Cascade Accessories & Pods

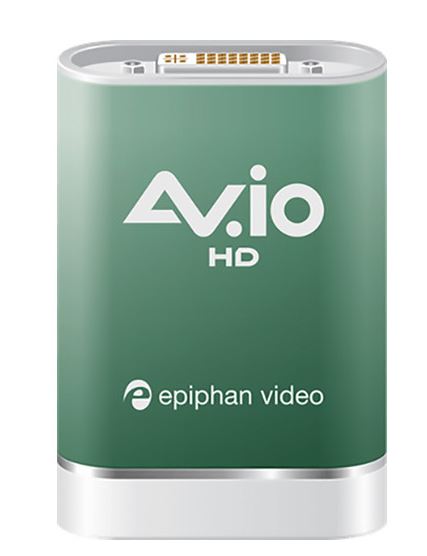

AVIO HD Microscope Video Adapter

The AV.io HD adapter is used to display video and save snapshots from the surgical microscope in Cascade software.

Requires the optional video monitoring software for Cascade, and a surgical microscope enabled with HD video output.

Transfer up to a 1080p / WUXGA DVI video signal to your computer with the robust and compact Epiphan AV.io HD Video Grabber. Using included adapters, do the same with HDMI and VGA signals.

The AV.io HD is a UVC device that shows up on your computer as a webcam. As a UVC device it's designed to integrate with a capture software on your computer, and it's seamlessly compatible with all the popular capture software, including Wirecast, Skype, QuickTime, Adobe FMLE, VLC media player, Windows Camera, and any conferencing software. The captured data can be used for a variety of purposes, like high-end streaming, webcam applications requiring higher image quality than standard webcams offer, and for recording, such as if a doctor needs to capture an ultrasound.

This sleek capture device features a DVI input and USB 3.0 output (USB 2.0 backwards-compatible), and includes a DVI-to-HDMI adapter and DVI-to-VGA adapter cable. It supports up to 1080p and 1920 x 1200 WUXGA resolution on both input and output at up to 60 fps. Connect cameras, mobile devices, home entertainment devices, and other DVI, HDMI, and VGA sources, and transmit the content to your computer uncompressed and with near-zero latency.

The AV.io HD is auto-detected on Windows, Mac, and Linux systems, allowing for for easy integration. This device has a tough build and can be relied on for long-term use. It has a metal exterior that's strong enough to withstand being dropped as well as stepped on. A DVI cable and USB 3.0 cable are also included, so you have everything you need right out of the box.

Key Features

  • Transfer up to a 1920 x 1200 resolution DVI/HDMI/VGA signal to your computer
  • DVI input and USB 3.0 output
  • DVI to HDMI adapter and DVI-to-VGA adapter cable included
  • UVC device that seamlessly integrates with popular capture software
  • Up to 1080p and 1920 x 1200 resolution on input and output
  • Near-zero latency
  • Auto-detected on Windows, Mac, and Linux systems
  • Tough, metal exterior
  • LED status indicators
  • DVI and USB cables included

Cascade Elite Quick-Connect Replacement Kit

Replacement parts for the Elite cable connection at the base unit.

Epiphan Avio SDI Microscope Adapter

To display video and save snapshots from the surgical microscope in Cascade software, a coaxial cable, analog to digital video adapter and a BNC to RCA adapter (Cadwell Part Number 277024-000) are required. Two cable lengths are available. All items are sold separately.

Requires the optional video monitoring software for Cascade, and a surgical microscope enabled with analog video outbout via BNC connection.



Microscope Connection Kit - Analog

To display video and save snapshots from the surgical microscope in Cascade software, a coaxial cable, analog to digital video adapter and a BNC to RCA adapter are required. Two cable lengths are available. All items are sold separately.

Requires the optional video monitoring software for Cascade, and a surgical microscope enabled with analog video outbout via BNC connection.



Electrosurgery Detector Kit

Provides an easy to setup means of preventing electrosurgical artifact from contaminating EP responses and EMG recordings.  Attach the clip to the lead wire of electro-surgical tools and turn on the options in the Cascade software. One clip will handle multiple tools but when two electrosurgery units are in use, two clips may be used with a single module.  The module plugs into the auxiliary port on the base of either Cascade or Cascade Elite. Clips are sold separately.

Cascade Impedance Test Array Fixtures

These test arrays are plugged into the Cascade or Elite amplifiier inputs to test or verify proper impedance function during amplifier diagnostic testing.

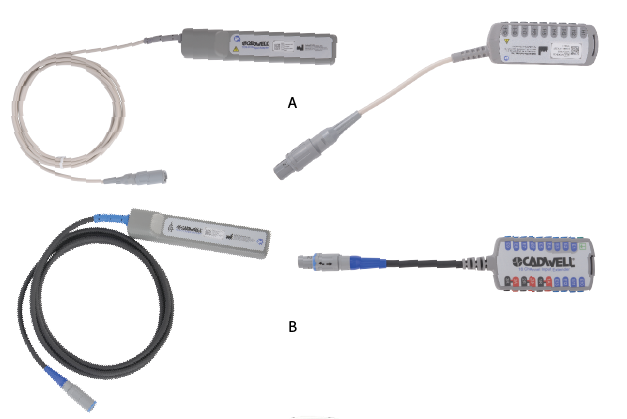

Replacement Remote Input Extender Pod

Replacement input extender pods for Cascade, Cascade Pro, and Cascade Elite systems.

Cascade Elite Power/Communication Module

Power/Communication Module provides communication between the Cascade Elite Amplifier/Base unit and the computer via a 10 base T Ethernet cable and an Elite power/com cable.  A hospital grade power cord provides AC power to the Elite system.  The Power cord, the 10 base T cable, and the power/com cable are all sold separately.  ***Laptops require P/N 286081-000 for power.***

Noise Detection Probe, 200EP Inductive Amplifier

Allows monitorists to quickly locate sources of noise in the operating room.  This detector is also great to trouble shoot noise in your clinic, office, etc...Stop wondering where the noise is coming from and find it.

Stimulator Input Extender

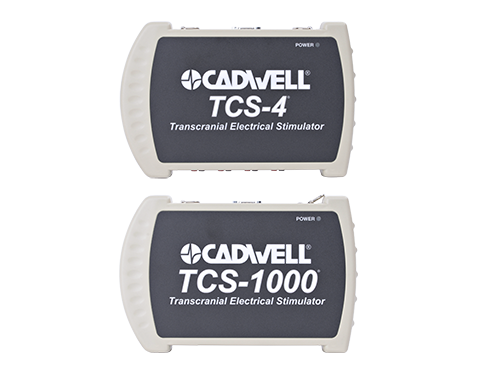

The 25 foot Stimulator Input Extender is used for attaching stimulator leads used with transcranial motor evoked potentials to the TCS-4 or TCS-1000 stimulators.  It allows you to keep the TCS stimulator at a safe distance from the OR table, and away from potential accidental fluid or physical damage.

Also, the small design saves precious space near the head of the OR table.

Y Power Cord Adapter

The y-power cord adapter kit will allow a single power cord to connect to the wall outlet to power both the Cadwell IONM instrument and a Cadwell-supplied laptop with a 3-prong power entry connector.

Only Cadwell approved devices (IONM system and laptop) should be connected to these power cord adapters. Note:  A standard power cord is still required with the combination of 286121-000 and 286122-000. Power cord PN 286123-000 is shown as an example of a Cadwell supplied wall outlet power cord. This power cord may be interchanged with an equivalent Cadwell approved wall outlet power cord.

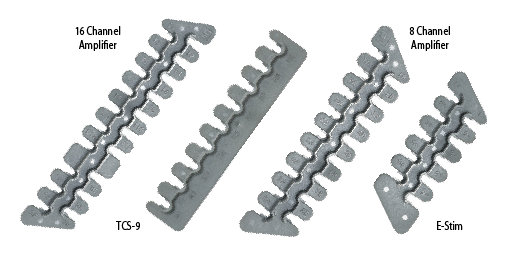

Quick Adapts

Quick Adapts are a reusable accessory that allow quick and easy organization, insertion and removal of an entire pod’s electrodes all at once.

Quick Adapts are sold as a pack of four in colors red, green, yellow and blue (1 of each). Variations in number of units or color combination are not available at this time.  A Cadwell-branded black canvas pouch with zipper is included with this item.
